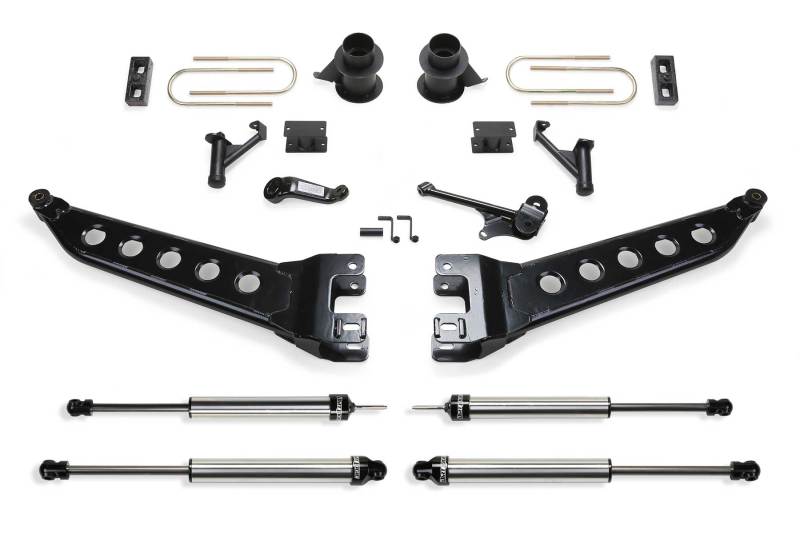

Improving on the Ram's new front suspension design this 5'' System includes replacement tubular Radius Arms with Fabtech's exclusive dimple die side plates for superior strength and a rugged appearance. These new Radius Arms provide increased caster for use with oversized tires and lifted suspension heights. The stock front coil springs are mounted with angular steel spacers to retain the factory spring bow. This is an important feature as Chrysler designed this bow to aid in their unique alignment spec and ride quality. Flat spacers do not provide this. Heavy duty 1/4'' thick steel front Track Bar drop bracket centers the axle under the vehicle with the new ride height. A Fabtech innovation on this system is the steel front bump extensions. They will not blow out like extra long urethane bump stops found in other aftermarket suspensions. No chance of spring and shock damage with the Fabtech'steel extensions. The rear suspension receives a block and u bolt system with bump stop extensions. The 5'' Radius Arm System will clear 37'' tall tires and includes front and rear 2.25 Dirt Logic Stainless Steel shocks. Estimated installation time - 4.5 Hours. 10 holes to drill for installation. No Welding Required.

This Part Fits:

Year	Make	Model	Submodel
2013-2015	Ram	3500	Big Horn
2013-2016	Ram	3500	Laramie
2014-2015	Ram	3500	Laramie Limited
2013-2016	Ram	3500	Laramie Longhorn
2013-2015	Ram	3500	Lone Star
2013-2016	Ram	3500	SLT
2013	Ram	3500	ST
2013-2016	Ram	3500	Tradesman
