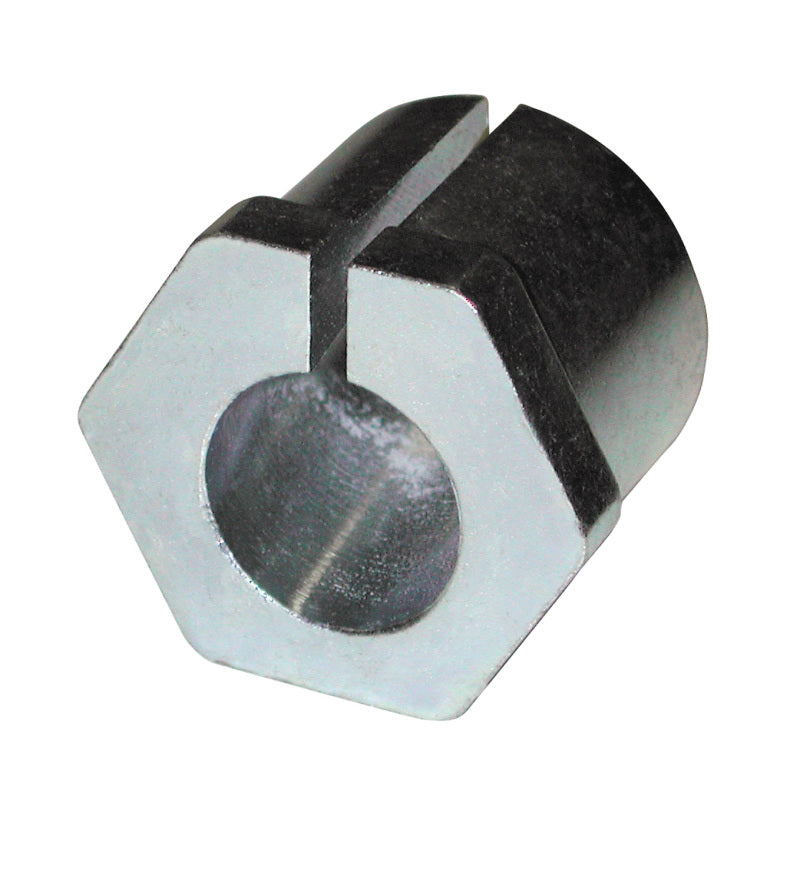

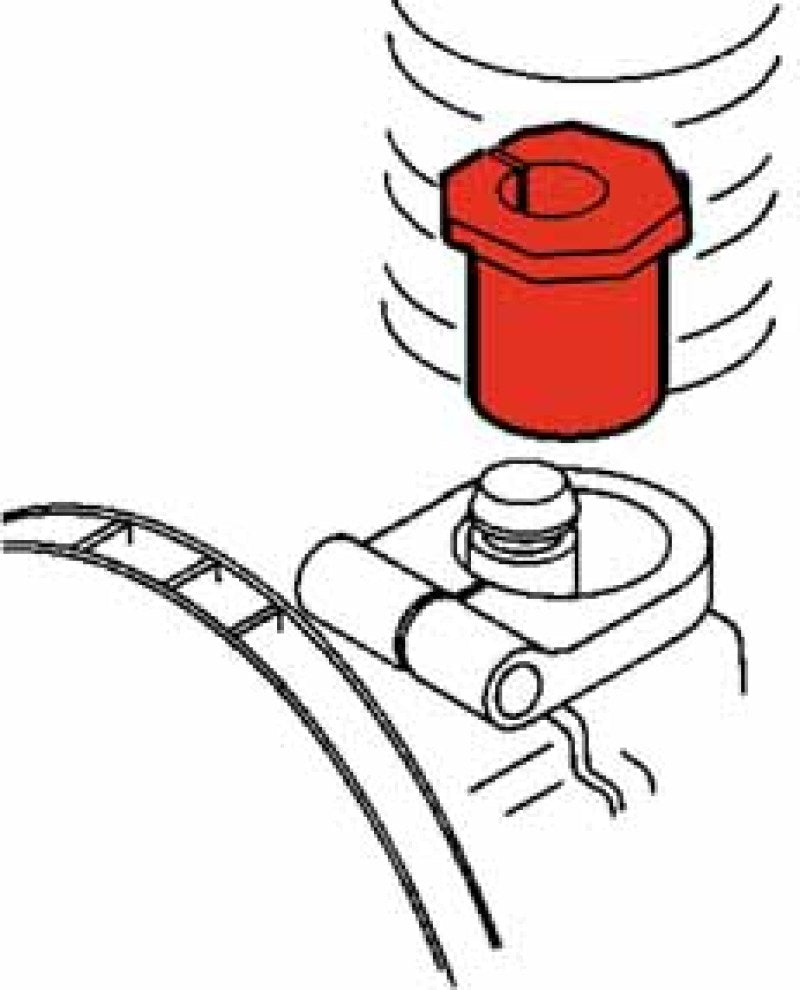

These popular sleeves are widely used to adjust caster and/ or camber on many Ford and Mazda RWD & 4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use 77880 or 88830 sleeve puller to remove the existing sleeve. To split camber and caster adjustment, rotate sleeve 45deg. Save time during alignment, use 23199 zero degree sleeve to determine initial readings, then install correct sleeve. Note: Sleeves adjust to a smaller degree on Ford andMazda 4WD light trucks/SUVS. California Residents WARNING
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1989-1990	Ford	Bronco II	Eddie Bauer
1989-1990	Ford	Bronco II	XL
1989-1990	Ford	Bronco II	XL Sport
1989-1990	Ford	Bronco II	XLT
1989-1990	Ford	Bronco II	XLT Plus
2003-2014	Ford	E-150	Base
2006-2007	Ford	E-150	Chateau
2006-2014	Ford	E-150	XL
2006-2014	Ford	E-150	XLT
2003-2005	Ford	E-150 Club Wagon	Chateau
2003-2005	Ford	E-150 Club Wagon	XL
2003-2005	Ford	E-150 Club Wagon	XLT
1992-2002	Ford	E-150 Econoline	Base
1992-2000	Ford	E-150 Econoline	XL
1992-2002	Ford	E-150 Econoline Club Wagon	Chateau
1992-2000	Ford	E-150 Econoline Club Wagon	Custom
2001-2002	Ford	E-150 Econoline Club Wagon	XL
1992-2002	Ford	E-150 Econoline Club Wagon	XLT
2003-2014	Ford	E-250	Base
1992-2002	Ford	E-250 Econoline	Base
1992-2000	Ford	E-250 Econoline	XL
2003-2005	Ford	E-350 Club Wagon	Chateau
2003-2005	Ford	E-350 Club Wagon	XL
2003-2005	Ford	E-350 Club Wagon	XLT
1992-1998	Ford	E-350 Econoline	Base
1992-1998	Ford	E-350 Econoline	XL
1992-2002	Ford	E-350 Econoline Club Wagon	Chateau
1992-1996	Ford	E-350 Econoline Club Wagon	Chateau HD
1992-2000	Ford	E-350 Econoline Club Wagon	Custom
1992-1993	Ford	E-350 Econoline Club Wagon	Custom HD
2001-2002	Ford	E-350 Econoline Club Wagon	XL
1994-1998	Ford	E-350 Econoline Club Wagon	XL HD
1992-2002	Ford	E-350 Econoline Club Wagon	XLT
1992-1998	Ford	E-350 Econoline Club Wagon	XLT HD
1999-2019,2021-2024	Ford	E-350 Super Duty	Base
2006	Ford	E-350 Super Duty	Chateau
1999-2000,2006-2014	Ford	E-350 Super Duty	XL
2006-2014	Ford	E-350 Super Duty	XLT
2015-2016	Ford	E-450 Super Duty	Base
2003-2005	Ford	Excursion	Eddie Bauer
2000-2005	Ford	Excursion	Limited
2004-2005	Ford	Excursion	XLS
2000-2005	Ford	Excursion	XLT
1991-1994	Ford	Explorer	Eddie Bauer
1993-1994	Ford	Explorer	Limited
1991-1994	Ford	Explorer	Sport
1991-1994	Ford	Explorer	XL
1991-1994	Ford	Explorer	XLT
1987-1992	Ford	F-150	Custom
1995-1996	Ford	F-150	Eddie Bauer
1993-1995	Ford	F-150	Lightning
1995-1996	Ford	F-150	Special
1987-1996	Ford	F-150	XL
1993-1996	Ford	F-150	XLT
1987-1992	Ford	F-150	XLT Lariat
1997-1999	Ford	F-250	Base
1987-1992	Ford	F-250	Custom
1995-1996	Ford	F-250	Eddie Bauer
1997-1999	Ford	F-250	Lariat
1995-1996	Ford	F-250	Special
1987-1999	Ford	F-250	XL
1993-1999	Ford	F-250	XLT
1987-1992	Ford	F-250	XLT Lariat
1997	Ford	F-250 HD	XL
1997	Ford	F-250 HD	XLT
2004-2023	Ford	F-250 Super Duty	King Ranch
1999-2023	Ford	F-250 Super Duty	Lariat
2023	Ford	F-250 Super Duty	Limited
2016-2017,2023	Ford	F-250 Super Duty	Platinum
1999-2024	Ford	F-250 Super Duty	XL
1999-2023	Ford	F-250 Super Duty	XLT
1997	Ford	F-350	Base
1987-1992	Ford	F-350	Custom
1995	Ford	F-350	Eddie Bauer
1995-1996	Ford	F-350	Special
1987-1997	Ford	F-350	XL
1993-1997	Ford	F-350	XLT
1987-1992	Ford	F-350	XLT Lariat
2009-2010	Ford	F-350 Super Duty	Cabela's
2008-2009	Ford	F-350 Super Duty	FX4
2004-2010	Ford	F-350 Super Duty	Harley-Davidson Edition
2003-2022	Ford	F-350 Super Duty	King Ranch
1999-2024	Ford	F-350 Super Duty	Lariat
2013-2022	Ford	F-350 Super Duty	Platinum
1999-2024	Ford	F-350 Super Duty	XL
1999-2024	Ford	F-350 Super Duty	XLT
1989-1992	Ford	Ranger	Custom
1989	Ford	Ranger	GT
1989-1992	Ford	Ranger	S
1990	Ford	Ranger	S Plus
1993-1997	Ford	Ranger	Splash
1991-1993,1997	Ford	Ranger	Sport
1989-1997	Ford	Ranger	STX
1993-1997	Ford	Ranger	XL
1995	Ford	Ranger	XL Sport
1989-1997	Ford	Ranger	XLT
1994-1997	Mazda	B2300	Base
1994-1997	Mazda	B2300	SE
1994-1996	Mazda	B3000	Base
1994-1996	Mazda	B3000	SE
1997	Mazda	B4000	Base
1994-1996	Mazda	B4000	LE
1994-1997	Mazda	B4000	SE
1992-1994	Mazda	Navajo	DX
1991-1994	Mazda	Navajo	LX
